DESIGN PIPES

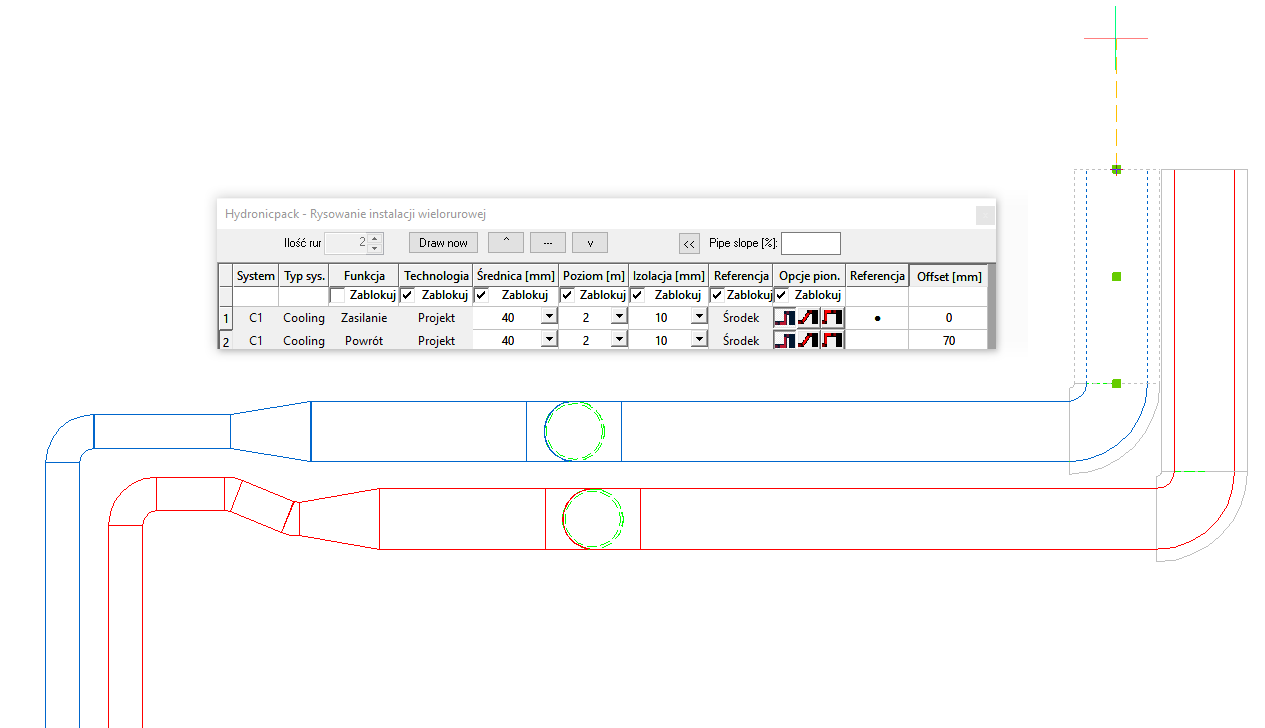

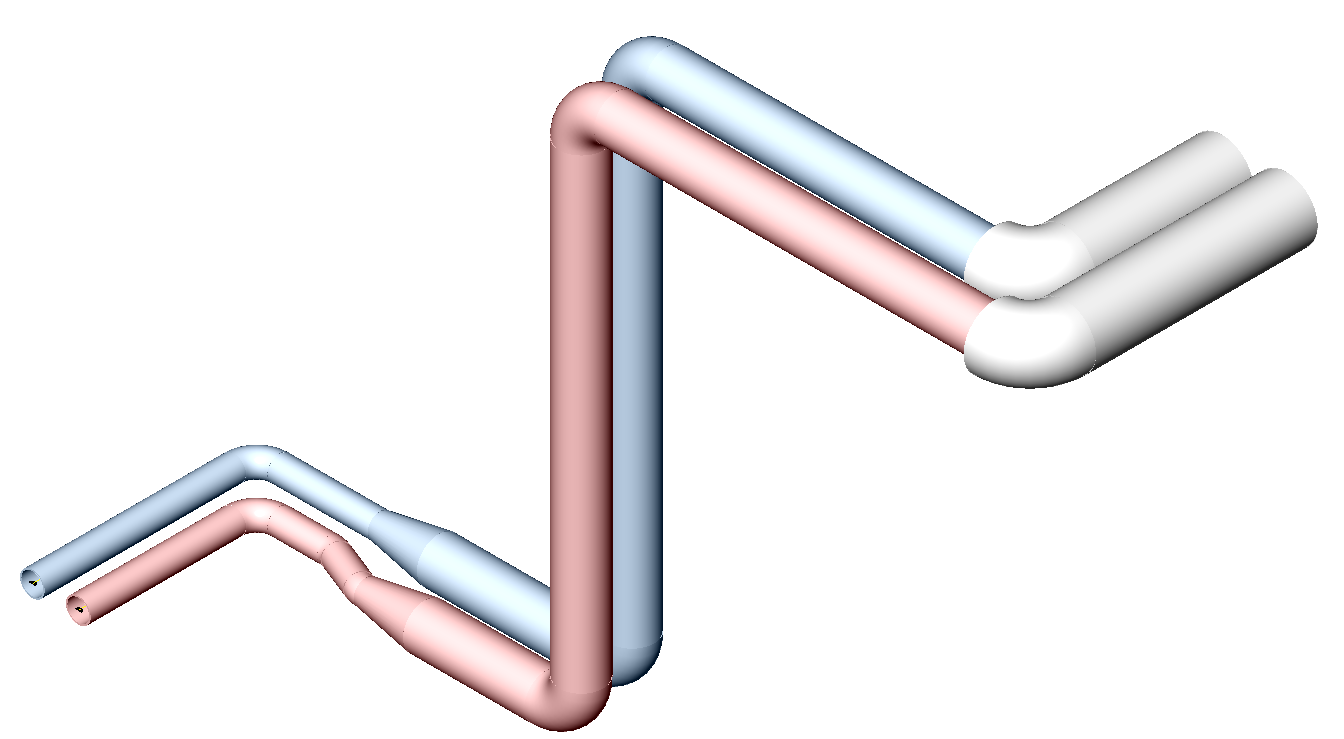

Design single or multiple pipes turn by turn, specifying points on the drawing. While tracing the path, you can change the type of pipe („Technology”), diameter, elevation, insulation or set the distance between pipes („Offset”). It is also possible to create risers by selecting the desired locations, starting drawing then changing the elevation and pressing the „Draw now” button to finish; sloped pipes can also be drawn by setting the „Pipe slope” parameter.
